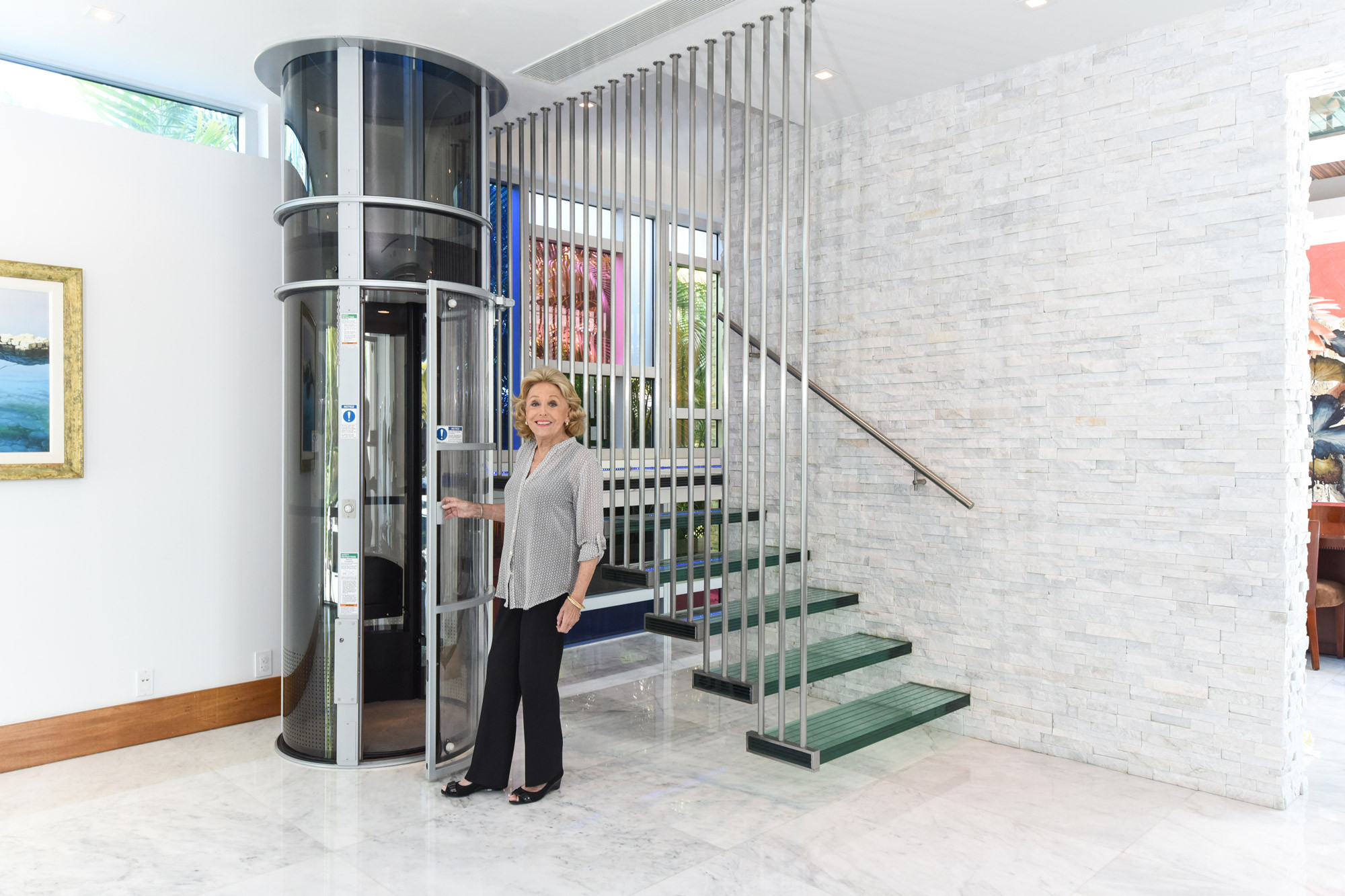

Vacuum Elevator
PVE52

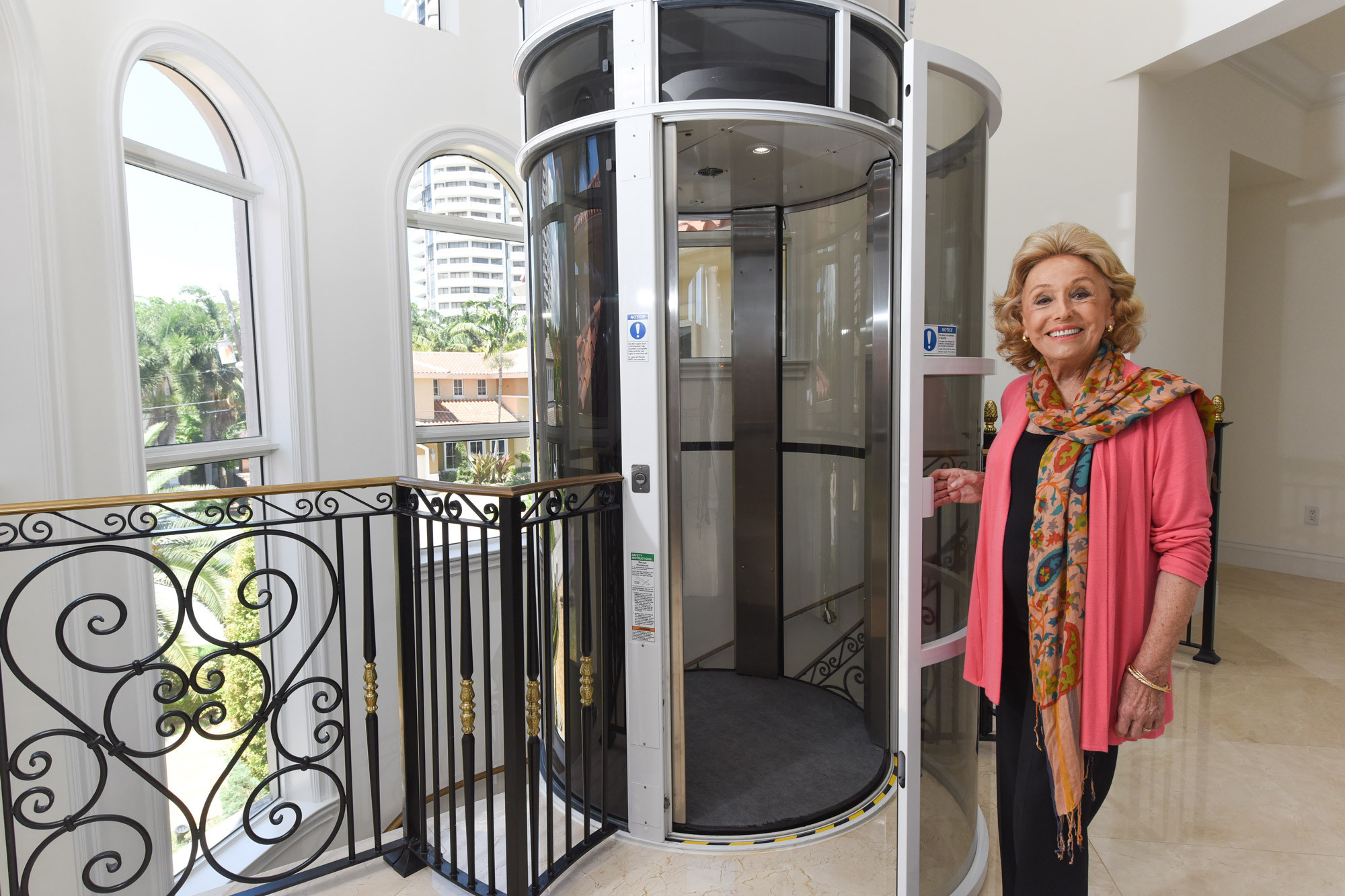

As the world’s smallest home elevator, the PVE30 has quickly found it’s place as the ultimate space-saving solution for any home. If you are in need of a home elevator, but are limited in space, this Single-Passenger Home Elevator is the perfect solution for you.

Options

  • Color Options: Standard Gray, Light Gray, White, Black, Taupe, Silver.
  • Cabin Door Lock: Used to lock the cabin door to prevent unsupervised access.
  • Cabin Phone: Used to make emergency calls directly from inside of cabin, requires a phone line.
  • Earthquake Consoles: Required for 4-5 stops projects in areas prone to earthquake to fix the unit to the walls.
  • Split Unit: Used to remotely locate the vacuum unit, which is normally on top of the unit, up to 10m distance in order to create more vertical space.
  • Split Unit Adapter: Required for split unit connections made with horizontal pipes.
  • No pit, hoist way or machine room required
  • Self supporting structure
  • 15m total rise max.
  • 0.10m/s travelling speed
  • 238kg rated load
  • 2 - 5 stops
  • External cylinder diameter: 1399mm
  • Internal cabin diameter: 1118mm
  • Internal cabin height: 2007mm
  • Entrance way opening: 813mm
  • Weight of unit: 920kg for 2.8m ceiling
  • Through floor or Balcony/Stairway Mount landings
  • Power supply: 35A 200V AC
  • Aluminium and polycarbonate cylinder structure
  • Automatic interior LED lightning and fan
  • Mechanical emergency safety brake system
  • ASME A17.7 Certified

Door Opening Configurations

Ground Floor Upper Floors
In Line 0°
Opposite Direction  180°
Same Direction 0°
First Floor
Upper Floors
Left 90°
First Floor
Upper Floors
Opposite Direction 180°
First Floor
Upper Floors
