Mechanical Components
  • Galvanized metal and crashproof plastic body
  • Phosphor bronze contacts with a high elasticity
  • Cleaning itself with the friction occuring during the opening and closing movement
  • Lifetime reliability and conductibility warranty
  • Easy electrical connection with clampscrews
  • Soft special rubber roller with 41mm diameter
  • With carton box packaging, safe against outside effects and easy storage

Floor Switch

Floor switches has 5 contacts for 3 positioning; ascent, level and descent. Communicating travel, which goes from a minimum of 60mm up to a maximum of 80mm, makes the reversing switch easilt adjustable.

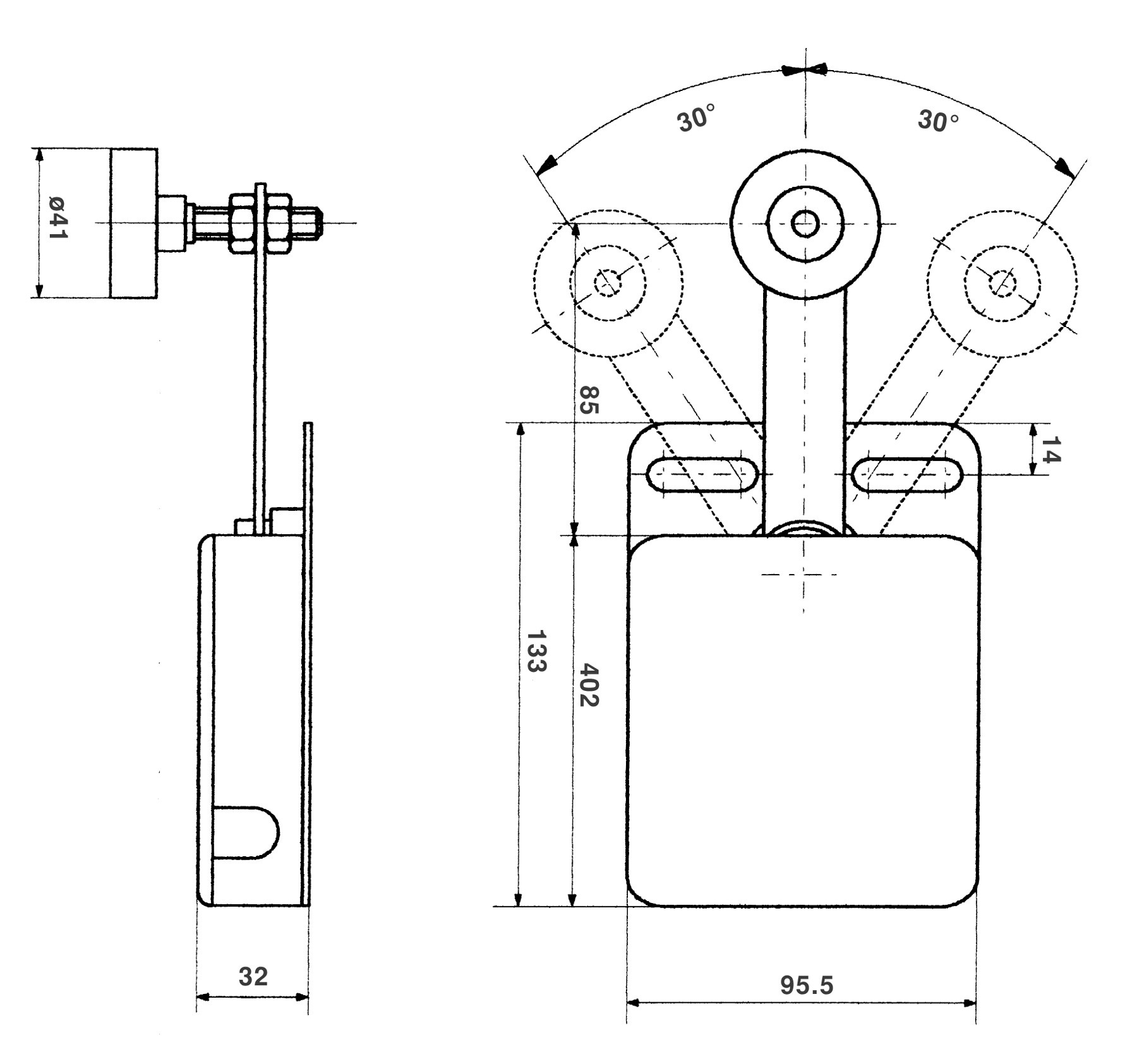

Limit (Final) Switch

In limit switch the end stroke has a contact for 2 positions; stop and running. Return is by spring for a right and left assembling.
